CHARGING INFRASTRUCTURE FOR ELECTRIC VEHICLES
Discover podis®, an innovative solution for decentralized energy distribution that makes setting up a charging infrastructure in multi-storey and underground car parks child's play!
DECENTRALIZED POWER DISTRIBUTION FOR ELECTRIC VEHICLES
Electric vehicles have emerged as a promising solution for reducing CO2 emissions and improving air quality. However, the vehicles and their charging infrastructure pose challenges on the road to a greener and more sustainable future. The increasing number of electric vehicles is causing demand for electric charging stations to skyrocket, straining existing power grids and leading to power outages and expensive retrofits.
To address these challenges and facilitate long-term electromobility, Wieland Electric presents a pioneering solution for setting up a charging infrastructure with decentralized power distribution. The podis® flat cable system enables quick, safe, and flexible charging of electric vehicles in both new and existing multi-storey or underground car parks.
WE'VE TALKED ABOUT
DECENTRALIZED ENERGY DISTRIBUTION,
BUT WHAT EXACTLY DOES THAT MEAN?
❌ CONVENTIONAL INSTALLATION
A centralized installation requires significantly more material than a decentralized one. The large number of supply lines also means that considerable space is required in the distribution cabinet. Retrofitting thus becomes a Herculean task.
DISADVANTAGES OF CONVENTIONAL INSTALLATION
❌ Time-consuming
❌ Large material requirements and waste
❌ Increased space requirements
❌ Very time-consuming changes
✅ DECENTRALIZED INSTALLATION
Decentralized installation with podis® allows you to implement energy distribution for an entire parking deck with just one supply line and place the modules for tapping-off energy exactly where you need them. This saves space and ensures a modern, clear aesthetic.
ADVANTAGES OF DECENTRALIZED INSTALLATION
✅ Excellent flexibility
✅ Space-saving
✅ Maximum error prevention
✅ Less material and labour required
✅ Impressive installation speed
✅ Exceptional quality
NOT IMPRESSED YET?
TAKE A LOOK AT THE PODIS® INSTALLATION IN FAST MOTION!
PLUGGABLE SIMPLE

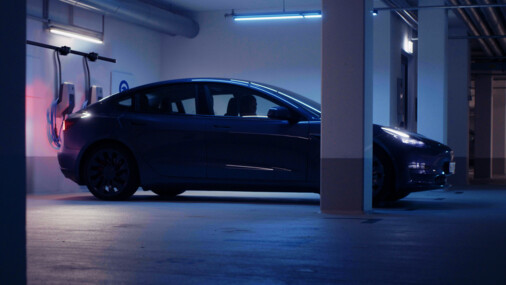

podis® installation in an underground car park in fast motion
THE INNOVATION BEHIND
SPEED.
DOESN'T MATTER IF IT'S QUICK.
THE INNOVATION BEHIND
FLEXIBILITY.
ENERGY DISTRIBUTION THAT GROWS WITH ITS TASKS.
THE INNOVATION BEHIND
SAFETY.
ISN'T IT NICE IF NOTHING HAPPENS?
LEARN MORE ABOUT THE INSTALLATION OF PODIS®
IN UNDERGROUND CAR PARKS AND MULTI-STOREY CAR PARKS
CHARGING INFRASTRUCTURE FOR CAR PARKS & UNDERGROUND GARAGES
The increasing prevalence of electric vehicles brings with it an increased demand for charging options, both at home and in businesses. In car parks and underground car parks in particular, there are a number of advantages to implementing electric vehicle charging stations, which we will explain below.
✔️ SPACE OPTIMISATION
Car parks and underground car parks are usually built in limited space. Decentralized energy distribution, as offered by the podis® energy bus system, makes it possible to supply a large number of charging stations with a single supply line. This saves valuable space in the distribution cabinet, which is particularly advantageous in confined spaces.
✔️ EFFICIENT ENERGY DISTRIBUTION
Thanks to decentralized energy distribution, the energy is distributed evenly across the charging stations. This minimises energy loss and ensures that all charging stations are operated efficiently, regardless of how many vehicles are being charged at the same time.
✔️ SCALABILITY
The podis® system allows up to twenty charging stations to be installed as required and operated with efficient load management. This means that car parks and underground car parks can be easily expanded to meet the increasing demand for charging facilities without having to make costly infrastructure changes.
SOLUTIONS FOR YOUR CHARGING INFRASTRUCTURE PROJECT
Anyone involved in the implementation of a charging infrastructure benefits from the numerous advantages of the podis® system. As your partner, we understand the challenges of today's and tomorrow's e-mobility and offer customized solutions that make your projects efficient and future-proof.
YOUR BENEFITS AT A GLANCE
- Request individual consultation:
Our experts work with you to develop a solution tailored to your specific requirements.
- Find the right partner:
Quickly locate the right specialist or wholesaler near you for direct access to our solutions.
- Inquire about a partnership:
Are you interested in a partnership in your region? Contact our expert Hans-Jürgen Kihl: Hans-Juergen.Kihl@wieland-electric.com.
ENERGY PROVIDERS, CITY ADMINISTRATIONS & INVESTORS
Due to legal regulations, not only must new buildings be equipped with charging infrastructure, but existing buildings must also be retrofitted during renovations. In both cases, podis® offers a cost-effective solution.
- Time, cost, material, and space-saving system solution
- Easy retrofitting in existing buildings
- Initial installation independent of the number of charging stations
- System compatibility regardless of the charging station manufacturer
- Modern and structured look
- Future-proof system thanks to simple expandability
ELECTRICAL PLANNERS
With maximum flexibility, podis® minimizes planning efforts when setting up charging infrastructure. It allows for easy modifications and retrofitting while enabling installation independent of the charging station.
- Reliable project planning regarding execution time and costs
- Easy planning with a clear portfolio
- Expandable without major effort
- Multiple charging stations on a single power line
- Technologically advanced
- Safe operation
- Reduced fire load thanks to decentralized system architecture
ELECTRICAL INSTALLERS
Install more charging stations in less time while responding flexibly to your customers' needs. With its modular design, podis® allows for easy modifications and expansions at any time.
- Easy to install and expand
- Can be extended at any point with minimal effort
- Saves time, costs, and materials
- No need for stripping or insulation removal
- Less cabling effort
- Minimal effort required for modifications
WHOLESALERS & SPECIALIST RETAILERS FOR E-MOBILITY
Enhance your portfolio with state-of-the-art technology. Compared to conventional solutions, podis® stands out for its exceptional ease of installation. As a complete system with coordinated components, it also simplifies inventory management.
- Comprehensive solution
- Easy inventory management with a clear parts list
- Proof of an outstanding portfolio
- Technologically advanced
- Simplified installation adds value
- Installation independent of the charging station
CHARGING STATION MANUFACTURERS
As a charging station manufacturer, you have the opportunity to offer podis® as a branded complete system. This way, you not only benefit from selling your charging stations but can also provide the installation of the entire charging infrastructure.
- Integration of RST® plug-in components into the charging station for even easier installation
- Stronger customer retention through expandability
- Technologically advanced
- Safe operation
- Easy installation
- Installation can be marketed alongside the product
- Complete system solution
FREE WEBINAR RECORDING:
EVC – POWER SUPPLY FOR EV CHARGING STATIONS
In this webinar recording, you will gain a comprehensive insight into the podis® flat cable system and its application in electromobility. The webinar covers the fundamentals of the system, discusses its key components, and explains the responsibilities involved in its implementation.
Learn how podis® enables an efficient and flexible charging infrastructure and discover its advantages for decentralized power distribution.
PODIS® - INNOVATION IS MORE THAN THE SUM OF ITS PARTS
MINIMAL COMPLEXITY FOR EASY INSTALLATION:
EFFORTLESS HARDWIRING WITH JUST FOUR BASIC MODULES
FLAT CABLE
| Rated voltage | 690 V |
| Rated current | 63 A |
| Connection cross-section | 16 mm² |
| Number of poles | 5 |
| Impact resistance | IK 10 |
| BPVO class | B2ca-s1a,d1 |
You can find detailed information in our shop or our brochure:
CONNECTION MODULE FOR CONVENTIONAL WIRING
| For feeding into the flat cable and for tapping into the charging station | |
|---|---|
| Rated voltage | 690 V |
| Rated current | 63 A (max. 40°C) |
| Connection cross-section | 1,5 bis 16 mm² |
| IP protection class | IP65 |
| Impact resistance | IK 09 |
You can find detailed information in our shop or our brochure:
CABLE END PIECE
Two cable end pieces are required on both sides of each wiring harness. They are used to obtain IP protection type 65.
You can find detailed information in our store or in our brochure:
CABLE CLIP
The cable clips with quick-release fasteners and just one fastening point are optimized for maximum time savings and easy handling.
- One component: Connected lower and upper part for simplified installation.
- Locking with quick-release fastener: Tool-free locking by simply pressing down the top part.
- Two variants:
- For fastening with a bolt gun.
- With slotted hole for classic screw fastening.
- Heat dissipation and retrofittability: Space between the flat cable and the substrate, which not only leads to better heat dissipation, but also enables the simple integration of additional connection modules at a later date.
- Data cable routing: Adaptable pipe clamps enable clean parallel data cable routing.
- Accessories: Clips for fastening to cable trays and the cable basket clamp round off the options.
You can find detailed information in our store or in our brochure:
EVEN FASTER, EVEN EASIER:
INSTALLATION IS EVEN SIMPLER THANKS TO PLUG-IN COMPONENTS
CONNECTION MODULE IN PLUG-IN VERSION
| As outlet in the flat cable - Pluggable RST 25 | |
| Rated voltage | 400 V |
| Rated current * | 32 A (max. 28°C) |
| Connection cross-section | 6 mm² pre-wired |
| IP protection class | IP65 |
| Impact resistance | IK 09 |
You can find detailed information in our store or in our brochure:
PREFABRICATED CABLE
For a quick, pluggable power supply to the charging station. With the pre-assembled cable with a free end or as a connecting cable, we offer various connection options and maximum flexibility.
You can find detailed information in our store or in our brochure:
EQUIPPED FOR EVERY SCENARIO:
FURTHER COMPONENTS ROUND OFF OUR PORTFOLIO
CIRCUIT BREAKER MODULE:
In accordance with IEC 60364-7-722:2018, the overcurrent and residual current protective device for protecting the charging stations must be installed in the branching final circuits of each charging station. These can be integrated either in the charging station itself or in a podis® circuit breaker module specially designed for electromobility.
The podis® circuit breaker module is fully pre-wired and equipped with the necessary RCDs or MCBs. There are variants for wiring (with cable gland) as well as for plug-in installation. The module also acts as a connection to the flat cable and integrates the overcurrent and residual current device for the final circuit.
You can find detailed information in our store or in our brochure:
CONNECTION MODULE WITH DOUBLE OUTPUT
The double output module redefines efficiency by serving two consumers with just one tap. This not only saves time, but also costs, as an outgoing module can be dispensed with. The special cover provides an additional output, completely pre-wired and pluggable with RST® or for conventional wiring with cable gland.
You can find detailed information in our store or in our brochure:
JUST TRY IT OUT -
GET TO KNOW QUALITY AND FUNCTIONALITY WITHOUT ANY RISK
WE DELIVER THE PROOF
IN A SAMPLE CASE
See for yourself. In our podis® sample case you will find all the components you need to connect the podis® energy bus system:
- Flat cable 5G16 & 5G25
- Connection module for the output with cable gland
- Connection module with pluggable output
- A pre-assembled cable
- Various mounting options and screw drivers
KNOW EXACTLY WHAT YOU ARE LOOKING FOR?
PREPARED SHOPPING BASKETS, SPECIALIST RETAILERS AND PRODUCT OVERVIEW
OUR PODIS® PARTNERS, SIMPLY CONNECTED
UNITED KINGDOM
Doncaster Cables
Millfields Industrial Estate,
Arksey Lane, Bentley,
Doncaster, DN5 0SJ,
United Kingdom
Phone Number: +44 (0)1302 821700
Email Address: sales@doncastercables.com
Website: www.doncastercables.com
NETHERLANDS
Isolectra bv
Wilhelminakade 957,
3072 AP,
Rotterdam,
Netherlands
Phone Number: +31 10 285 54 44
Email Address: verkoop@isolectra.nl
Website: www.isolectra.nl or EV Laden
INSTALLATION WITH CONVENTIONAL WIRING
| PODIS® FLAT CABLE WITH ACCESSORIES | ||
|---|---|---|
| # | Designation | Order no. |
| 1 | Flat cable 5G16 | 00.771.0307.1 |
| 2 | Cable clip Screw | 05.569.7453.0 |
| 3 | Cable end piece | Z6.563.6553.0 |
| CONNECTION MODULE WITH ACCESSORIES | ||
| 4 | Connection module with cut-out for cable gland | 75.456.0053.1 |
| 5 | Cable gland 18-25 mm | Z5.507.1653.1 |
| 6 | Nut | 05.505.0353.1 |
PRODUCTS FOR INSTALLATION WITH CABLE GLAND
We make your purchasing easier with our prepared shopping baskets. You get an insight into how to put together your components and can order them directly.
INSTALLATION WITH RST® PLUGGABLE SYSTEM
| PLUG-IN CONNECTION MODULE AND ASSOCIATED ASSEMBLED CABLES | ||
|---|---|---|
| # | Designation | Order no. |
| 7 | Connection module, plug-in RST25 | 75.453.0053.1 |
| 8 | Connection cable 5G6 RST25; 0,5 m | 99.456.0124.0 |
| 9 | Connection cable 5G6 RST25; 1,0 m | 99.453.0124.0 |
| 10 | Connection cable 5G6 RST25; 1,5 m | 99.454.0124.0 |
| 11 | Connection cable 5G6 RST25; 2,0 m | 99.455.0124.0 |
| 12 | Connection cable 5G6 RST25; 2,5 m | 99.459.0124.0 |
| 13 | Connection cable 5G6 RST25; 3,0 m | 99.460.0124.0 |
PRODUCTS FOR THE PLUGGABLE INSTALLATION VARIANT
The same applies to the prepared shopping cart for the podis® installation variant with pluggable RST system. This not only optimizes installation, but also your purchasing. By carefully selecting and bundling components, we enable time-saving implementation of your electrical installations and increase efficiency in the procurement process.
PODIS® PROVES TO BE
INDISPENSABLE IN PRACTICE
Modular and flexible access ...
Convinced customers are the best proof that a product has proven itself in use. And for Daniel Ruf from the Swiss Burkhalter Group, podis® has already passed the practical test with flying colors: "We rely on a system that can be installed with little effort and without errors. Traditional cabling methods would no longer work with our business model."
The advantages of podis® are particularly evident when his company retrofits existing garages: "Let's imagine we install 90 charging stations in an underground car park and want to do this with conventional cables and junction boxes... that would be an adventurous undertaking in many places.
...of charging systems in apartment buildings...
In all the projects we retrofit, the space available in the route and in the main distribution board is not exactly princely. Of course, a system like this is very convenient for us. The development from the main electrical distribution board to the flat cable has proven to be very feasible in most cases."
DANIEL RUF, PROJECT MANAGER BURKHALTER GROUP
"TRADITIONAL CABLING METHODS WOULD NO LONGER WORK WITH OUR BUSINESS MODEL."
DANIEL RUF, PROJECT MANAGER BURKHALTER GROUP.
IMPRESSIVE FEEDBACK FROM REAL USERS
Illustrations: The picture gallery illustrates various installation methods in which PaechElektro successfully uses the podis® system.
OUR EXPERTS WILL CONVINCE YOU OF THE
ADVANTAGES OF ENERGY DISTRIBUTION WITH PODIS®
WHAT OUR EXPERT SAYS
"With the podis® flat cable system, Wieland Electric, as the market leader, offers an innovative installation system with just a few basic components that is the perfect solution for electromobility projects. In addition to the time saved during installation and the flexible retrofitting and expansion options, the system reduces the potential for errors to a minimum and thus counteracts the shortage of skilled workers."
Frank Nagengast
- Product Manager podis® flat cable systems
